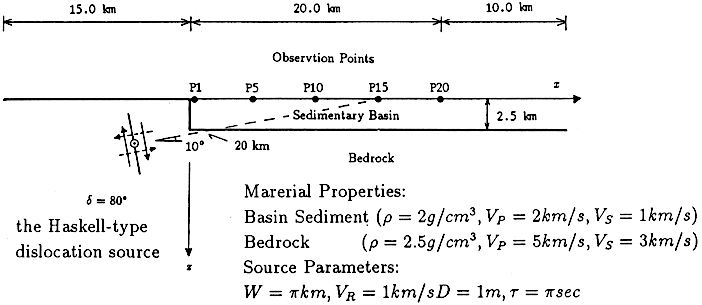

(a) Sedimentary basin and the Haskell-type dislocation models


(b) Velocities at P20 using BEM (solid line: with Q, dotted line: without Q)

FIGURE 3. Effects of Q on P, SV and Rayleigh waves in a sedimentary basin model
